Packaging is an important element in RF power transistors, influencing both the cost-efficiency and performance of a given device. Since peak powers can vary widely, from as low as 5 W to more than 1 kW, a range of packages is needed to cover every application. The choice of package format (air-cavity or overmolded plastic), often depends on the design requirements, and any trade-offs to be made between performance and cost.
Package Search
- * ACC = Air-Cavity Ceramic
- * ACP = Air-Cavity Plastic
- * OMP = Overmolded Plastic
| Package | Package family | Description | Mount | Date | Outline drawing |
|---|---|---|---|---|---|
| SOT502A | acc | Flanged ceramic package; 2 mounting holes; 2 leads | flange mount | 2012-05-02 | Download |

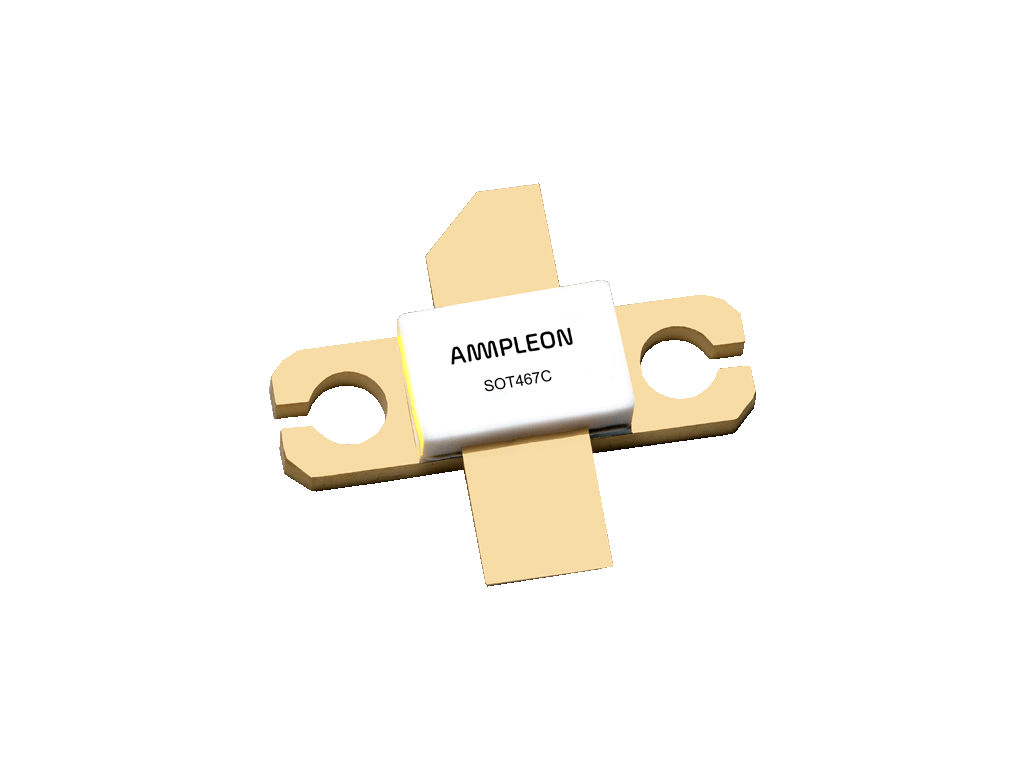

| SOT467C | acc | Flanged ceramic package; 2 mounting holes; 2 leads | flange mount | 2012-05-02 | Download |
| SOT538A | acc | Ceramic surface mounted package; 2 leads | surface mount | 2013-02-07 | Download |
| SOT957A | acc | Flanged ceramic package; 2 mounting holes; 2 leads | flange mount | 2007-03-01 | Download |
| SOT502B | acc | Earless flanged ceramic package; 2 leads | surface mount | 2012-05-02 | Download |
| SOT502D | acc | Eared flanged ceramic package; 2 leads; 2 mounting holes | flange mount | 2011-03-23 | Download |
| SOT502C | acc | Earless flanged ceramic package; 2 leads | flange mount | 2011-03-23 | Download |
| SOT634A | acc | Flanged ceramic package; 2 mounting holes; 2 leads | flange mount | 2003-05-01 | Download |
| SOT539A | acc | Flanged balanced ceramic package; 2 mounting holes; 4 leads | flange mount | 2010-05-02 | Download |
| SOT539B | acc | Earless flanged balanced ceramic package; 4 leads | surface mount | 2013-05-24 | Download |
| SOT502F | acc | Eared flanged ceramic package; 2 leads; 2 mounting holes | flange mount | 2014-03-14 | Download |
| SOT502E | acc | Earless flanged ceramic package; 2 leads | flange mount | 2012-05-30 | Download |
| SOT1250-1 | acp | Plastic earless flanged cavity package; 4 leads | surface mount | 2016-05-20 | Download |
| SOT1275-1 | acp | Air cavity plastic earless flanged package; 6 leads | surface mount | 2017-04-13 | Download |
| SOT1258-1 | acp | Air cavity plastic earless flanged package; 6 leads | surface mount | 2017-08-31 | Download |
| SOT1252-1 | acp | Air cavity plastic earless flanged package; 8 leads | flange mount | 2002-04-09 | Download |
| SOT1275-3 | acp | Air cavity plastic earless flanged package; 6 leads | flange mount | 2014-10-14 | Download |
| SOT1251-2 | acp | Air cavity plastic earless flanged package; 8 leads | flange mount | 2014-01-31 | Download |
| SOT1130A | acc | Flanged ceramic package; 2 mounting holes; 4 leads | flange mount | 2010-02-02 | Download |
| SOT1130B | acc | Earless flanged ceramic package; 4 leads | flange mount | 2009-12-14 | Download |
| SOT123A | acc | Flanged ceramic package; 2 mounting holes; 4 leads | flange mount | 1999-03-29 | Download |
| SOT121B | acc | Flanged ceramic package; 2 mounting holes; 4 leads | flange mount | 1999-03-29 | Download |
| SOT1214A | acc | Flanged ceramic package; 2 mounting holes; 4 leads | flange mount | 2012-10-10 | Download |
| SOT1214B | acc | Earless flanged ceramic package; 4 leads | flange mount | 2014-03-27 | Download |
| SOT1121A | acc | Flanged LDMOST ceramic package; 2 mounting holes; 4 leads | flange mount | 2010-02-02 | Download |
| SOT1121B | acc | Earless flanged ceramic package; 4 leads | flange mount | 2015-07-21 | Download |
| SOT1214C | acc | Earless flanged LDMOST ceramic package; 4 leads | flange mount | 2013-12-02 | Download |
| SOT1248C | acc | Earless flanged LDMOST ceramic package; 4 leads | flange mount | 2013-08-15 | Download |
| SOT409A | acc | Ceramic surface mounted package; 8 leads | surface mount | 2006-03-16 | Download |
| SOT1135A | acc | Flanged ceramic package; 2 mounting holes; 2 leads | flange mount | 2009-12-14 | Download |
| SOT1135B | acc | Earless flanged ceramic package; 2 leads | flange mount | 2009-02-14 | Download |
| SOT279A | acc | Flanged double-ended ceramic package; 2 mounting holes; 4 leads | flange mount | 1999-03-29 | Download |
| SOT161A | acc | Flanged ceramic package; 2 mounting holes; 8 leads | flange mount | 1999-10-04 | Download |
| SOT262A1 | acc | Flanged double-ended ceramic package; 2 mounting holes; 4 leads | flange mount | 1999-03-29 | Download |

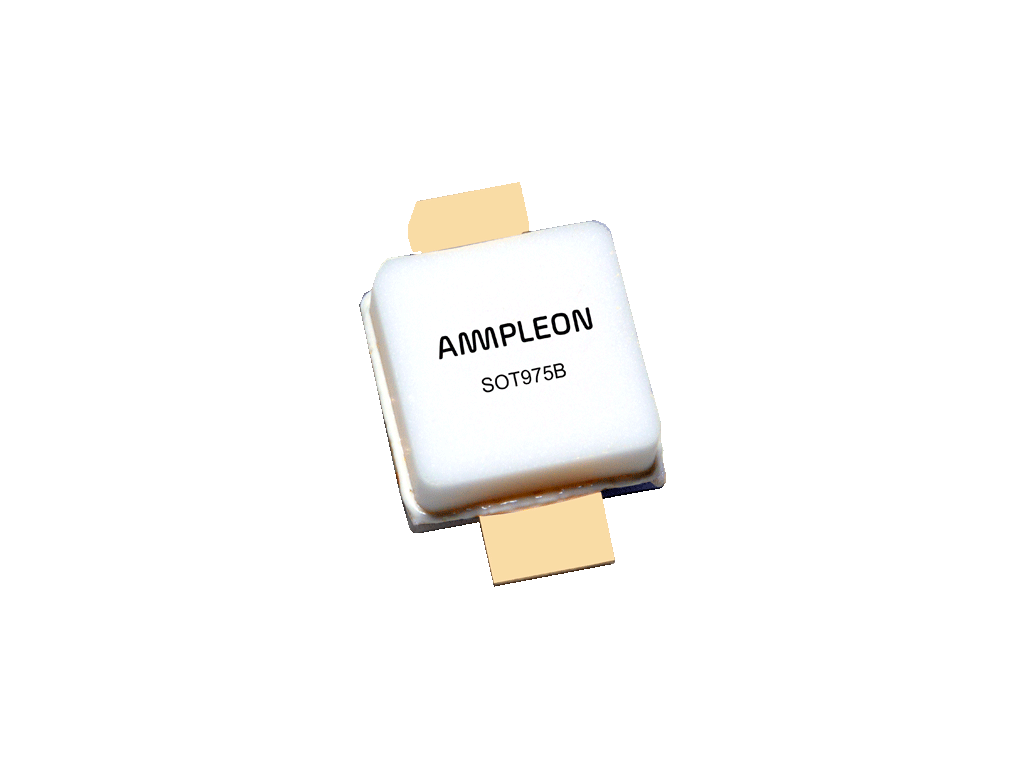

| SOT975B | acc | Earless flanged ceramic package; 2 leads | flange mount | 2014-10-20 | Download |
| SOT975C | acc | Earless flanged ceramic package; 2 leads | flange mount | 2014-10-13 | Download |
| SOT119A | acc | Flanged ceramic package; 2 mounting holes; 6 leads | flange mount | 1999-03-29 | Download |
| SOT800-2 | acc | Flanged ceramic package; 2 mounting holes; 4 leads | flange mount | 2005-06-07 | Download |
| SOT608A | acc | Flanged ceramic package; 2 mounting holes; 2 leads | flange mount | 2013-01-29 | Download |
| SOT172D | acc | Studless ceramic package; 4 leads | surface mount | 1997-06-28 | Download |
| SOT171A | acc | Flanged ceramic package; 2 mounting holes; 6 leads | flange mount | 1999-03-29 | Download |
| SOT268A | acc | Flanged double-ended ceramic package; 2 mounting holes; 4 leads | flange mount | 1999-03-29 | Download |
| SOT262A2 | acc | Flanged double-ended ceramic package; 2 mounting holes; 4 leads | flange mount | 1999-03-29 | Download |
| SOT1228A | acc | Flanged LDMOST ceramic package; 2 mounting holes; 4 leads | flange mount | 2013-05-16 | Download |
| SOT540A | acc | Flanged balanced ceramic package; 2 mounting holes; 4 leads | flange mount | 1999-12-28 | Download |
| SOT1112A | acc | Flanged ceramic package; 2 mounting holes; 6 leads | flange mount | 2010-02-02 | Download |
| SOT608B | acc | Ceramic earless flanged package; 2 leads | surface mount | 2013-01-29 | Download |
| SOT1121E | acc | Earless flanged LDMOST ceramic package; 4 leads | flange mount | 2014-06-23 | Download |
| SOT1110A | acc | Flanged LDMOST ceramic package; 2 mounting holes; 8 leads | flange mount | 2010-02-02 | Download |
| SOT1110B | acc | Earless flanged LDMOST ceramic package; 8 leads | flange mount | 2010-02-02 | Download |
| SOT1112B | acc | Earless flanged ceramic package; 6 leads | flange mount | 2010-02-02 | Download |
| SOT467B | acc | Earless ceramic package; 2 leads | flange mount | 2009-10-27 | Download |
| SOT979A | acc | Flanged LDMOST ceramic package; 2 mounting holes; 4 leads | flange mount | 2008-09-04 | Download |
| SOT1244C | acc | Earless flanged ceramic package; 6 leads | flange mount | 2012-05-14 | Download |
| SOT1244B | acc | Earless flanged ceramic package; 6 leads | flange mount | 2012-05-14 | Download |
| SOT1242C | acc | Earless flanged ceramic package; 8 leads | flange mount | 2012-05-15 | Download |
| SOT1242B | acc | Earless flanged ceramic package; 8 leads | flange mount | 2015-07-21 | Download |
| SOT1120B | acc | Earless flanged LDMOST ceramic package; 6 leads | flange mount | 2013-10-21 | Download |
| SOT1239B | acc | Earless flanged LDMOST ceramic package; 6 leads | flange mount | 2013-07-09 | Download |
| Pallet | Product outlines of all Ampleon pallets can be found in the respective Product Data sheets. | flange mount | 2014-04-14 | N/A | |
| SOT834-1 | omp | Plastic, heatsink small outline package; 16 leads (flat) | surface mount | 2003-10-22 | Download |
| SOT822-1 | omp | Plastic, heatsink small outline package; 16 leads | surface mount | 2007-02-08 | Download |
| SOT1211-2 | omp | Plastic, heatsink small outline package; 16 leads(flat) | surface mount | 2015-06-09 | Download |
| SOT1212-2 | omp | Plastic, heatsink small outline package; 16 leads | surface mount | 2015-06-09 | Download |
| SOT1223-2 | omp | Plastic, heatsink small outline package; 4 leads(flat) | surface mount | 2015-06-04 | Download |
| SOT1352-1 | omp | Plastic thermal enhanced very thin small outline package; no leads; 12 terminals | surface mount | 2013-03-26 | Download |
| SOT1179-2 | omp | Plastic thermal enhanced very thin small outline package; no leads; 12 terminals; body 4 x 6 x 0.85 mm | surface mount | 2013-07-16 | Download |

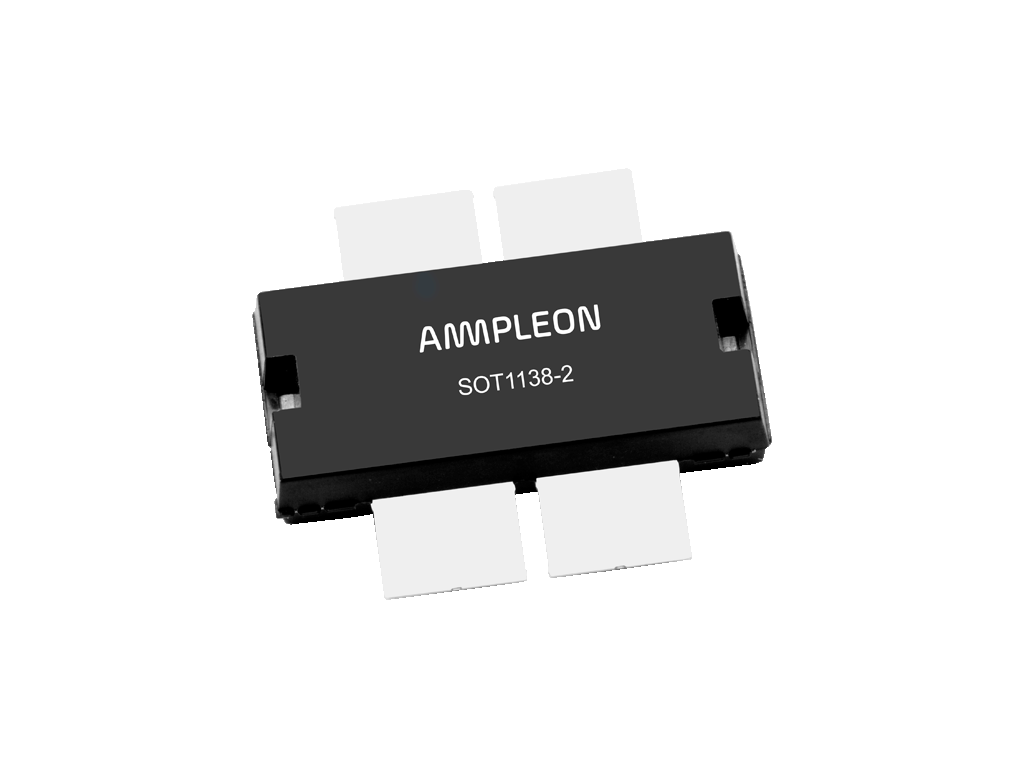

| SOT1138-2 | omp | Plastic, heatsink small outline package; 4 leads (flat) | surface mount | 2015-06-04 | Download |
| SOT1204-2 | omp | Plastic, heatsink small outline package; 4 leads | surface mount | 2015-06-04 | Download |
| SOT1221-2 | omp | Plastic, heatsink small outline package; 6 leads(flat) | surface mount | 2015-06-08 | Download |
| SOT1371-1 | omp | Plastic thermal enhanced very thin small outline package; no leads; 16 terminals | surface mount | 2014-05-19 | Download |
| SOT423A | acc | Flanged hermetic ceramic package; 2 mounting holes; 2 leads | flange mount | 1999-03-29 | Download |
| SOT445C | acc | Flanged hermetic ceramic package; 2 mounting holes; 2 leads | flange mount | 1999-03-29 | Download |
| SOT422A | acc | Flanged hermetic ceramic package; 2 mounting holes; 2 leads | flange mount | 1999-03-29 | Download |
| SOT922-1 | acc | Ceramic earless flanged cavity package; 2 leads | flange mount | 2005-11-22 | Download |
| SOT1228B | acc | Earless flanged LDMOST ceramic package; 4 leads | flange mount | 2013-05-15 | Download |
| SOT1227A | acc | Flanged ceramic package; 2 mounting holes; 2 leads | flange mount | 2013-10-14 | Download |
| SOT1227B | acc | Earless Flanged ceramic package; 2 leads | flange mount | 2013-10-15 | Download |
| SOT1224-2 | omp | Plastic, heatsink small outline package; 4 leads | surface mount | 2015-06-04 | Download |
| SOT1271-2 | acp | Air cavity plastic earless flanged package; 6 leads | flange mount | 2017-04-13 | Download |
| SOT1250-2 | acp | Plastic earless flanged cavity package; 4 leads | surface mount | 2013-09-03 | Download |
| SOT1270-1 | acp | Air cavity plastic earless flanged package; 2 leads | flange mount | 2016-05-04 | Download |
| SOT1273-1 | acp | Air cavity plastic earless flanged package; 4 leads | flange mount | 2017-01-12 | Download |
| SOT1482-1 | omp | Plastic; heatsink small outline package; 2 leads (flat) | flange mount | 2017-04-01 | Download |
| SOT1483-1 | omp | Plastic; heatsink small outline package; 2 leads | flange mount | 2017-02-21 | Download |
| SOT1462-1 | omp | Plastic thermal enhanced quad flat package; no leads; 20 terminals; body 8.0 x 8.0 x 2.1 mm | flange mount | 2017-06-23 | Download |
| SOT1211-3 | omp | Plastic, heatsink small outline package; 16 leads(flat) | flange mount | 2018-07-26 | Download |
| SOT1212-3 | omp | Plastic, heatsink small outline package; 16 leads | flange mount | 2018-07-26 | Download |
| SOT1251-1 | acp | Air cavity plastic earless flanged package; 8 leads | flange mount | 2017-08-31 | Download |
| SOT1258-4 | acp | Air cavity plastic earless flanged package; 6 leads | flange mount | 2017-08-31 | Download |
| SOT993-3 | omp | Plastic thermal enhanced very thin quad flat package; no leads; 28 terminals; body 5 x 5 x 0.85 mm | surface mount | 2010-03-02 | Download |
| SOT1138-3 | omp | Plastic, heatsink small outline package; 4 leads (flat) | surface mount | 2018-07-26 | Download |
| SOT1204-3 | omp | Plastic, heatsink small outline package; 4 leads | surface mount | 2018-07-26 | Download |
| SOT1223-4 | omp | Plastic, heatsink small outline package; 4 leads (flat) | surface mount | 2018-07-26 | Download |
| SOT1224-4 | omp | Plastic, heatsink small outline package; 4 leads (flat) | surface mount | 2018-07-26 | Download |
| SOT1278-1 | acp | Air cavity plastic earless flanged package; 6 leads | flange mount | 2017-04-18 | Download |
| OMP-780-16G-1 | omp | Plastic, heatsink small outline package; 16 leads | surface mount | 2018-01-03 | Download |
| OMP-780-16F-1 | omp | Plastic, heatsink small outline package; 16 leads (flat) | surface mount | 2018-03-01 | Download |
| OMP-780-4F-1 | omp | Plastic, heatsink small outline package; 4 leads (flat) | surface mount | 2018-03-01 | Download |
| OMP-400-8G-1 | omp | Plastic, heatsink small outline package; 8 leads | surface mount | 2019-05-03 | Download |
| OMP-1230-4F-1 | omp | Overmolded plastic earless flanged package; 4 leads | surface mount | 2019-07-02 | Download |
| OMP-1230-4G-1 | omp | Overmolded plastic earless flanged package; 4 leads | surface mount | 2019-07-02 | Download |
| SOT1258-5 | acp | Air cavity plastic earless flanged package; 6 leads | flange mount | 2018-10-01 | Download |
| SOT1250-4 | acp | Plastic earless flanged cavity package; 4 leads | flange mount | 2019-01-17 | Download |
| SOT539AN | acc | Flanged balanced ceramic package; 2 mounting holes; 4 leads | flange mount | 2020-04-20 | Download |
| OMP-400-8F-1 | omp | Plastic, heatsink small outline package; 8 leads | surface mount | 2019-11-26 | Download |

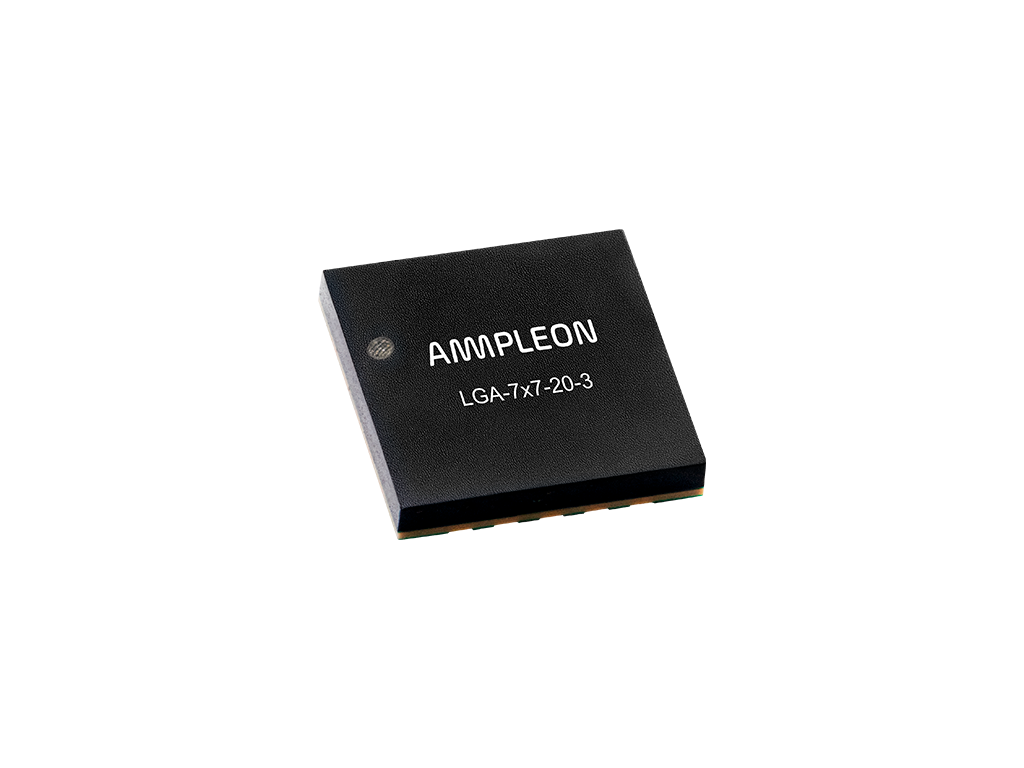

| LGA-7x7-20-1 | omp | Plastic thermal enhanced package; no leads; 20 terminals; body 7.0 x 7.0 x 0.98 mm | flange mount | 2019-12-30 | Download |
| LGA-7x7-20-2 | omp | Plastic thermal enhanced package; no leads; 20 terminals; body 7.0 x 7.0 x 0.98 mm | flange mount | 2019-12-30 | Download |
| OMP-780-6F-1 | omp | Overmolded plastic earless flanged package; 6 leads | surface mount | 2018-01-03 | Download |
| SOT539BN | acc | Earless flanged balanced ceramic package; 4 leads | surface mount | 2020-04-20 | Download |
| DFN-7x6.5-6-1 | omp | Dual flat no leads plastic package | flange mount | 2020-05-29 | Download |

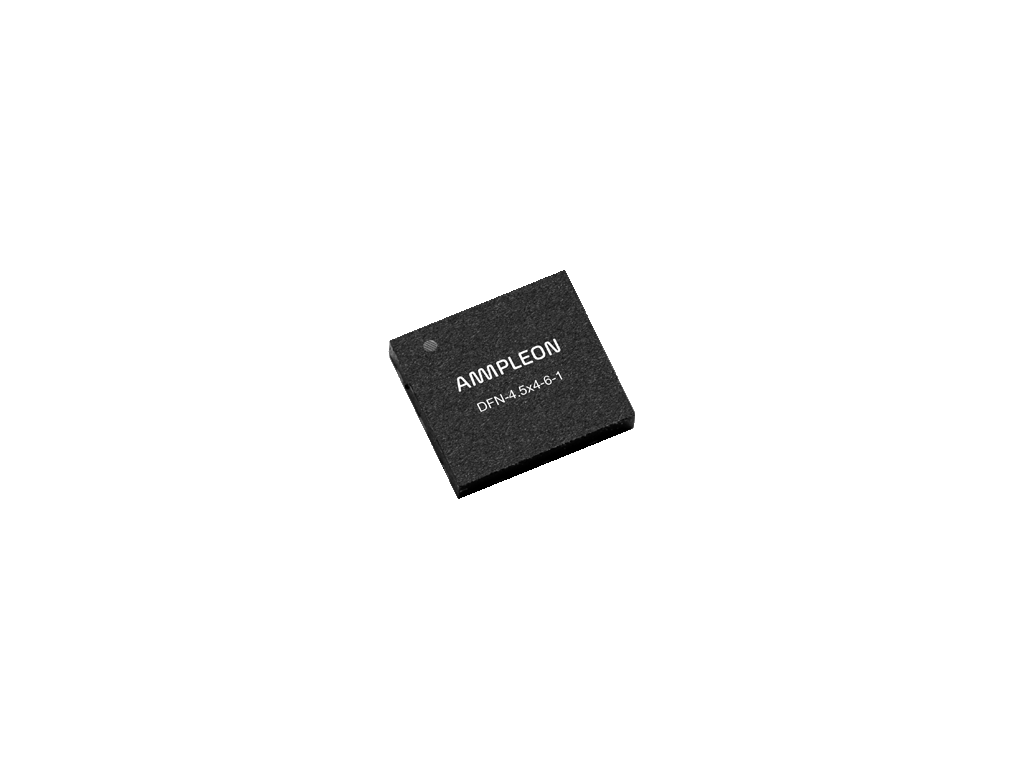

| DFN-4.5x4-6-1 | omp | Dual flat no leads plastic package | flange mount | 2020-05-29 | Download |
| PQFN-12x7-36-1 | omp | flange mount | 2021-11-23 | Download | |
| OMP-1230-6F-1 | omp | Overmolded plastic earless flanged package; 6 leads | flange mount | 2019-02-07 | Download |

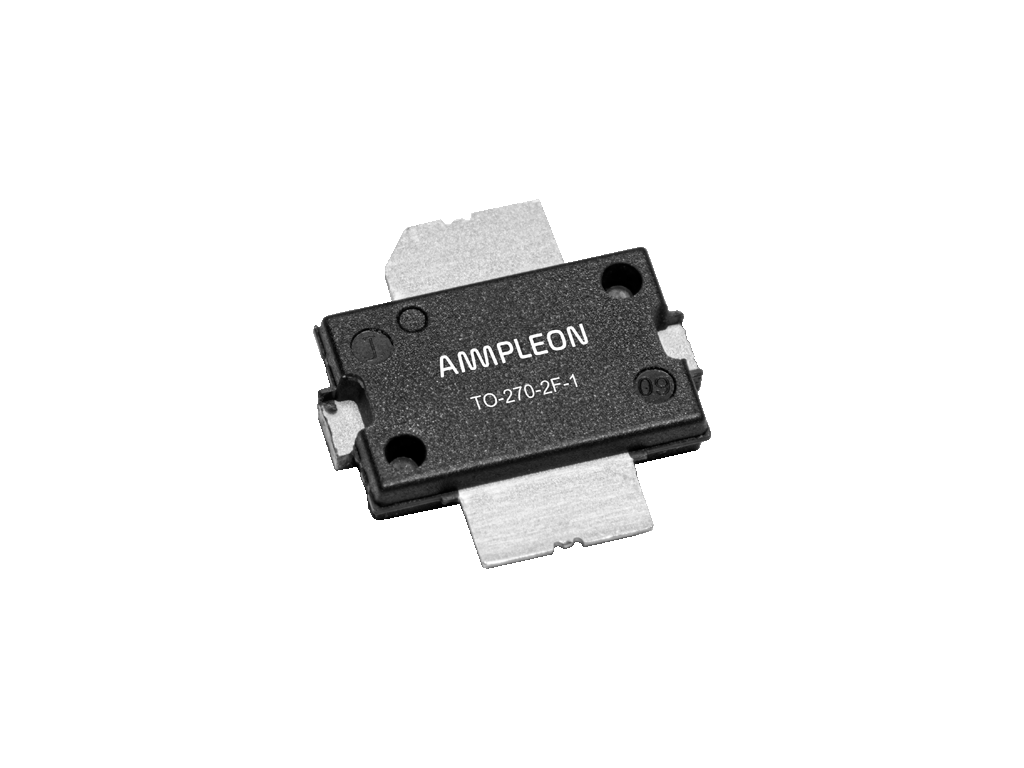

| TO-270-2F-1 | omp | Plastic; heatsink small outline package; 2 leads (flat) | flange mount | 2022-07-11 | Download |
| TO-270-2G-1 | omp | Plastic; heatsink small outline package; 2 leads | flange mount | 2022-07-11 | Download |
| SOT1249B | acc | Earless flanged ceramic package; 6 leads | surface mount | 2022-07-09 | Download |

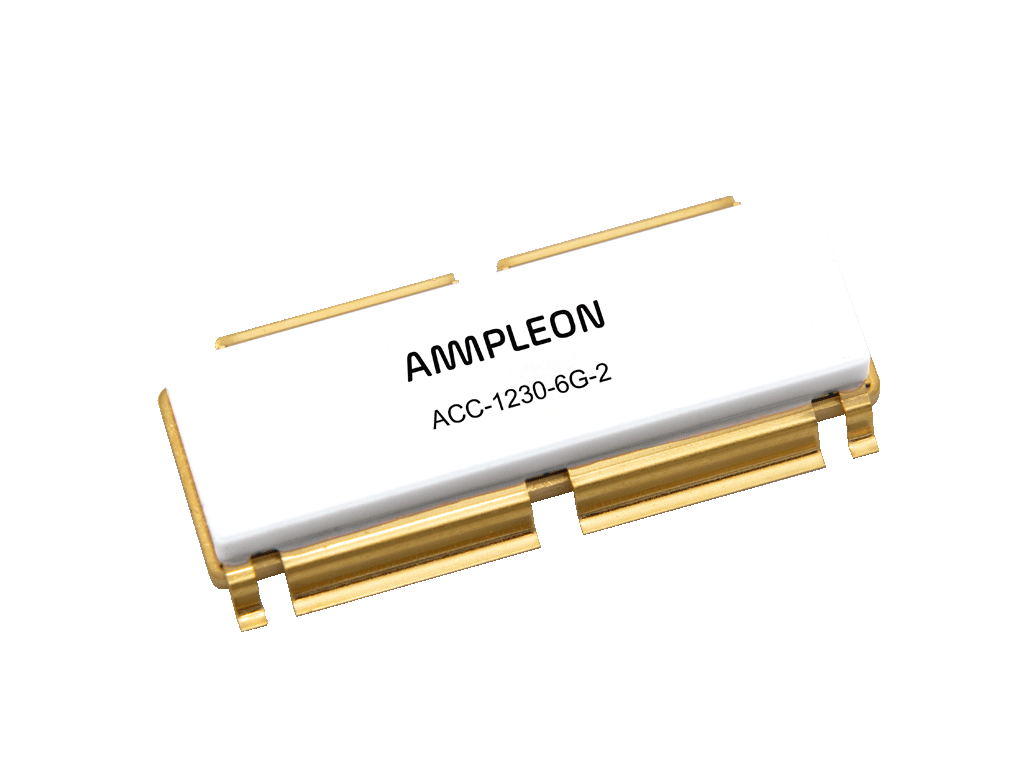

| ACC-1230-6G-2 | acc | Earless flanged ceramic package; 6 leads | flange mount | 2022-09-14 | Download |
| ACC-1230-6F-2 | acc | Earless flanged ceramic package; 6 leads | flange mount | 2022-09-14 | Download |

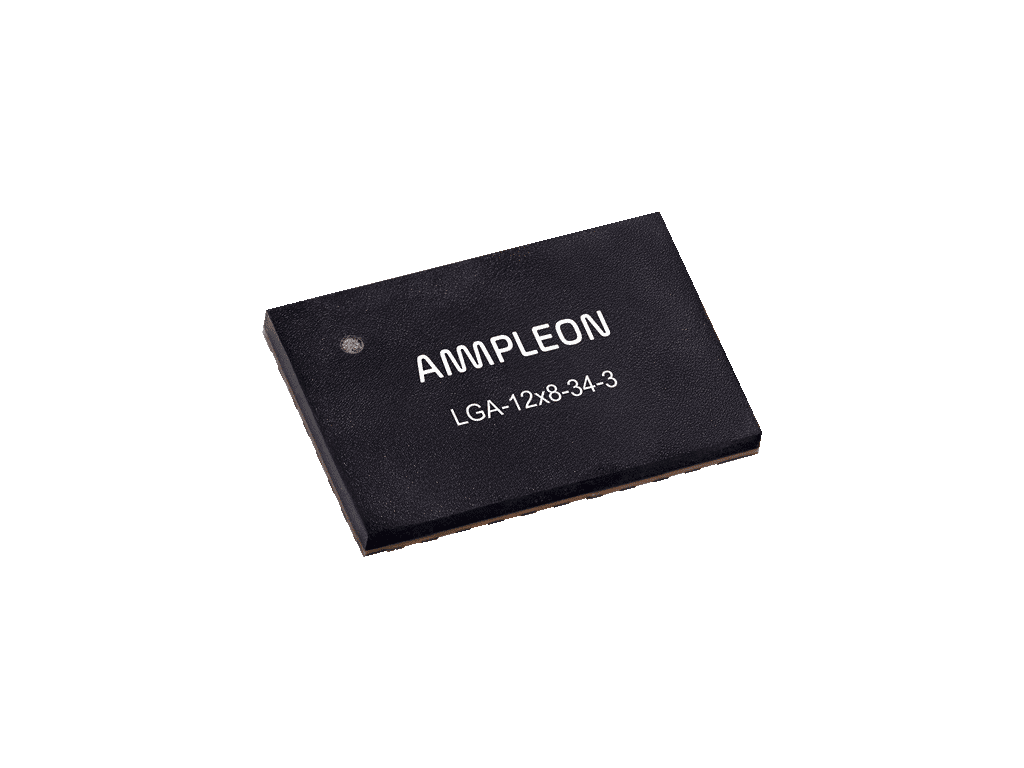

| LGA-12x8-34-2 | omp | flange mount | 2022-02-16 | Download | |
| OMP-780-4G-1 | omp | Plastic, heatsink small outline package; 4 leads (flat) | surface mount | 2018-01-03 | Download |
| OMP-1230-6F-2 | omp | Overmolded plastic earless flanged package; 6 leads | flange mount | 2021-07-15 | Download |
